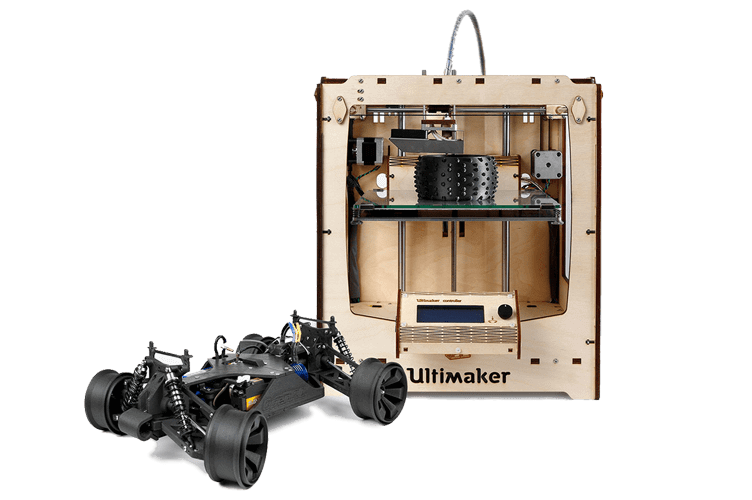

Ultimaker Original+

€995 + VAT

Hackable without limits, our original DIY 3D printer kit gives you endless freedom to experiment and enjoy reliable, accurate and consistent results.

Printer and printing properties

Assembly type

DIY kit

Layer resolution

0.40 mm nozzle: 200 to 20 microns

Build plate

 50 °C to 100 °C heated glass build plate

Build plate leveling

Manual leveling

Print technology

Fused Deposition Modeling (FDM)

Print head

Single extrusion print head with swappable nozzles

Print core replacement

Swappable print cores

Build speed

0.40 nozzle: up to 8 mm³/s

Print head travel speed

30 to 300 mm/s

Feeder type

 Dual geared feeder

XYZ accuracy

 12.5, 12.5, 5 micron

Nozzle diameter

0.4 mm

Nozzle temperature

180 ˚C to 280 ˚C

Nozzle heat up time

< 2 minutes

Build plate heat up time

 < 4 minutes

Operating sound

 57 dBA

Materials

System

Open filament system

Filament diameter

2.85 mm

Supported materials

PLA, ABS, CPE

Ultimaker filament

A spool of Ultimaker filament is 750 g

Requirements

Software

 Cura, our free print preparation software

Supported OS

 Free on macOS, Windows and Linux

Supported file types

STL, OBJ and AMF

File transfer

Standalone SD card printing

Operating ambient temperature

 15 °C to 32 °C (59 °F to 90 °F)

Nonoperating temperature

 0 °C to 32 °C (32 °F to 90 °F)

Input

100 - 240V
4A, 50-60Hz
221 W max.

Output

24 V DC, 9.2 A



Tailored for limitless creativity

  • Reliable and accurate

    The Ultimaker Original+ offers industry-leading specifications like 20 micron layer resolution and a print head travel speed of up to 300 mm/s.

  • Easy to modify and expand

    With upgrade capabilities, our 3D printer kit allows you to experiment and keep your machine up-to-date as the technology develops.

  • Affordable and fun

    Assembling your own 3D printer is a fun and great learning experience for those who wish to continue pushing the limits of what is possible.



Hardware components

Safety and compliance

MSDS

Download pdf



VPAT

Download pdf
